Skateboard trucks

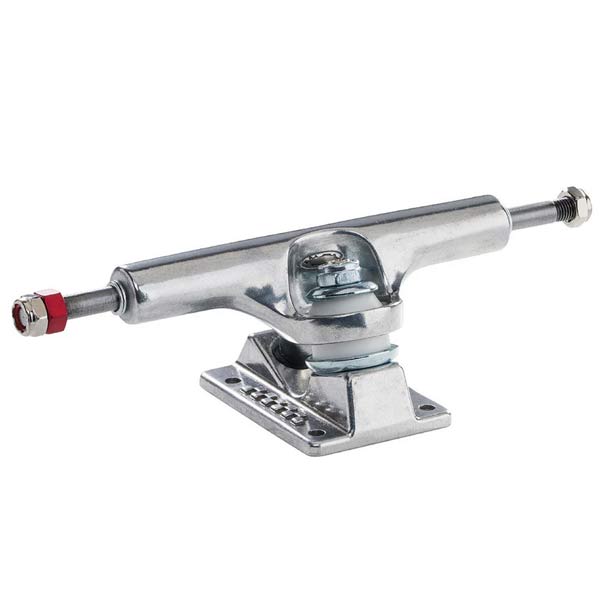

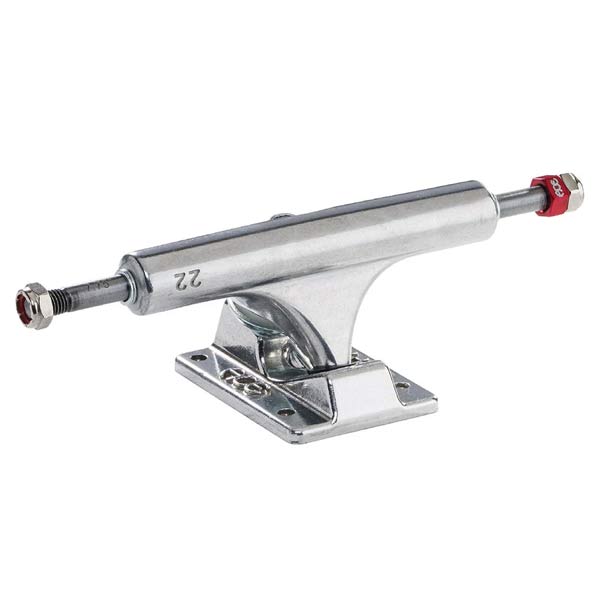

AF1 22 LOW w/ Hollow Kingpin Specs:

• Axle width: 7.75” (197mm)
• Hanger width: 51.2” (130mm)
• Truck height: 1.93″ (49mm)

• Fits boards: 7.5” – 7.875”

  • Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
  • True T6 heat-treated baseplates and hangers
  • SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
  • Patent pending rethreading axle nuts – no more damaged axle ends!
  • Durable Hand-poured 96a urethane pivot bushings for better response.
  • Refined suspension for a cleaner turn.
  • Top Bushing: 10mm tall | 91a hardness
  • Bottom Bushing: Bottom 12mm tall | 86a hardness
  • Machine-faced hanger ends for precise bearing contact.
  • Each truck includes bonus red Axel Re-Theader Die

The ACE AF1 LOW features HOLLOW Kingpins for a lightweight, lower profile AF1. Carefully manufactured using our proprietary casting process, the AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest and longest lasting cast truck on the market.

Sold in pairs.
